Toyota Stereo Wiring Harness Specs

hachiroku

1983 to 1986

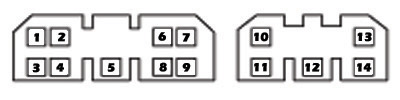

1983 to 1986 Wiring Harness

Pin	What It Does	Colour In Dash (Usual)	New Harness Match (Usual)
1	Right Front Speaker (+) Green	Green	Green
2	Left Front Speaker (+)	Pink	White
3	Right Front Speaker (-)	Blue	Gray w/ Black Stripe
4	Left Front Speaker (-)	Purple	White w/ Black Stripe
5	Ground Wire	Black	Black
6	+12 Volt Ign Wire	Gray	Red
7	Power Antenna Wire 1		Blue (join wires 1 &2 together
8	Power Antenna Wire 2		to this blue wire)
9		Do Not Use
10	Right Rear Speaker (+)	Red	Purple
11	Right Rear Speaker (-)	White	Purple w/ Black Stripe
12	+12 Volt Battery Wire	Blue w/ Yellow Stripe	Yellow
13	Left Rear Speaker (+)	Black	Green
14	Left Rear Speaker (-)	Yellow	Green w/ Black Stripe

1987 to Present

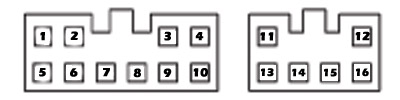

1987 to Present Wiring Harness

Pin	What It Does	Colour In Dash (Usual)	New Harness Match (Usual)
1	Right Front Speaker (+)	Green	Gray
2	Left Front Speaker (+)	Pink	White
3	+12 Volt Ign Wire	Gray	Red
4	+12 Volt Battery Wire	Blue w/ Yellow Stripe	Yellow
5	Right Front Speaker (-)	Blue	Gray w/ Black Stripe
6	Left Front Speaker (-)	Purple	White w/ Black Stripe
7	Ground Wire	Black	Black
8	Power Antenna Wire 1		Blue (join wires 1 &2
9	Power Antenna Wire 2		together to this blue wire)
10		Do Not Use
11	Right Rear Speaker (+)	Red	Purple
12	Left Rear Speaker (+)	Black	Green
13	Right Rear Speaker (-)	White	Purple w/ Black Stripe
14		Do Not Use
15		Do Not Use
16	Left Rear Speaker (-)	Yellow	Green w/ Black Stripe
